Successful online bearing monitoring of autogenous mill with HD technology

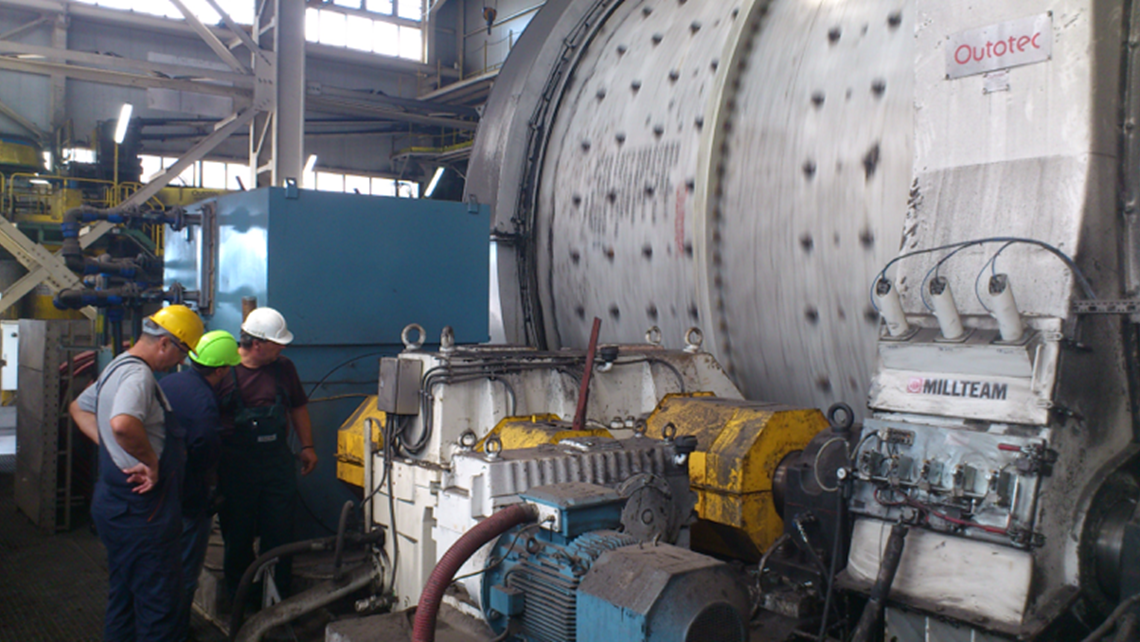

In this case study from Bulgarian copper producer Aurubis, the SPM HD shock pulse technology is used to monitor the pinion shaft bearings of a production-critical autogenous mill in the flotation plant.
The Intellinova Compact online system showed rising shock pulse levels right from the start, indicating outer race damage. The precision of the SPM HD measurements enabled Aurubis to stay on top of the development of this bearing damage over the following eighteen months and to plan for the bearing replacement at a suitable time. After the bearing was dismounted, the damage was confirmed, as can be seen from the photographs.
Another case study from Aurubis involved gear damage on a ball mill.
Download full case study
Case Study
CS016 - Autogenous Mill - Aurubis| Filename/description | Language | Size | Modified | |
|---|---|---|---|---|
| CS_016B_Autogenous Mill_Aurubis_BG.pdf | English (United Kingdom) | 3 MB | 11/10/2017 | |
| SPM HD case study on an autogenous mill at Aurubis Bulgaria. | ||||
