Condition monitoring in pulp and paper

SPM has supplied condition monitoring solutions to the pulp and paper industry for many years. Our first customers were North European paper mills at the beginning of the 1970s.

Condition monitoring is a cornerstone in the asset management of pulp and paper plants. Having control of the operating condition is a must to optimize plant profitability. Maintaining availability, maximizing forewarning time, and avoiding secondary damages are the main reasons for applying condition-based monitoring in pulp and paper.

Typical applications in pulp and paper are conveyor belts, chippers, chip classifiers, blowers, screw conveyors, refiners, pressure screens, agitators, nip monitoring, felt rollers, spreader rolls, suction rolls, Yankee cylinders, drying cylinders, vacuum pumps, reelers, and also electrical motors, pumps, fans, and gears.

"We continue to invest in SPM equipment to increase plant availability by avoiding bearing damage that may develop into failure."

Andreas Lindblom, Maintenance Manager of the mechanical workshop at Södra Cell Värö.

Digester condition monitoring for improved productivity

Whether the outlet device is hydraulic or gear-driven, SPM offers an unmatched reliability solution for digesters. The solution monitors the bearings that support the bottom scraper and shaft, where damage may develop quickly, with potentially disastrous consequences.

Benefits of the condition-monitoring solution for digesters:

  • Minimized production downtime
  • Maximized productivity
  • Less secondary damage
  • Reduced cost

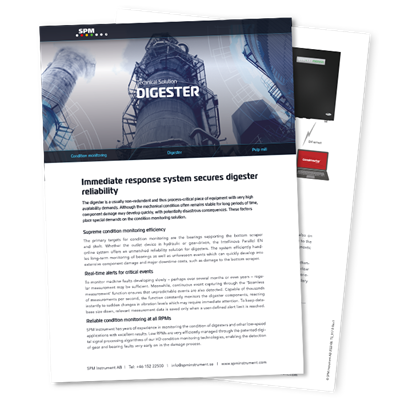

Technical Solution: Digester

Products for the pulp and paper industry

Considering the harsh environment of paper mills, SPM offers every piece of hardware and software equipment you need for an efficient condition-monitoring solution, from the point of data collection all the way through to evaluated measurement data. Our products and measuring techniques are specifically developed for the needs of the pulp and paper industry.

Portable instrumentation

Our range of handheld instrumentation includes equipment for shock pulse measurement, vibration severity measurement, and vibration spectrum analysis.

Intellinova online systems

With Intellinova, our unique HD condition-monitoring technologies can be fully utilized to successfully provide earlier warning of mechanical problems than any other monitoring technology.

Transducers and transmitters

Selecting the right transducer for your application is vital to measurement accuracy. We offer a wide range of high-quality transducers and transmitters.

Case studies

Lubrication issue on a felt guide roll detected with SPM LR/HR

This case study outlines the use of SPM LR/HR technology to monitor and extend the life of a felt guiding roll bearing in a paper machine's drying section. Condition data was collected through route-based measurements for over fourteen years, starting in 2008. Regular analysis with SPM LR/HR and...

Airius wireless sensors detect fan imbalance at packaging plant

In this case study, Airius wireless vibration sensors detected a fan imbalance condition on a waste fan in a plant producing specialist packaging products.

Bearing monitoring of pulp washer with SPM HD

The pulp washer, or wash press, is a critical piece of equipment in pulp production. As such, it is a prime target for online condition monitoring. When Norwegian pulp mill FollaCell AS equipped three pulp washers with the Intellinova Compact online system some time ago, it was not long before th...

Outer race damage on 4-7 RPM bearings

At Swedish biorefinery Domsjö Fabriker, the Intellinova Compact online system monitors the mechanical condition of two drying machines and one wash press. This case study recounts two separate occasions of severe bearing damage on the wash press.

Condition monitoring of refiner bearings

Norwegian pulp mill MMK FollaCell AS monitors critical equipment with the Intellova Compact online system. This case study describes three individual bearing damages found in two refiners.

Gear damage on rotary kiln

This case study describes the detection of gear damage on an output shaft, detected during a capacity test involving a speed increase.

Hallsta Paper Mill measures bearing condition with SPM HD

"Since April 2009, we have been engaged in a project together with SPM, where we have measured bearing condition on four of our twin wire presses with SPM HD® measuring technique. To maintain pulp quality, it is essential that these presses work properly. Any breakdowns also lead to major costs f...

Bearing damage on press roll

At Romanian paper mill Vrancart S.A., the online system Intellinova Compact with HD condition monitoring technology is installed to monitor the press section of paper machine K25. This case study involves the detection of bearing damage on one of the press rolls, showing the development of the da...

Multistage gearbox failure

Part of a comprehensive project investigating and determining best practices for gearbox monitoring with HD technology, this case study involves condition monitoring of a multi-stage gearbox in a pulp mill.

HD Technologies on couch roll

This case study shows comparative measurements between SPM HD and HD ENV on a couch roll bearing in paper machine K25 at Romanian paper mill Vrancart S.A. Adjud.

Outer race damage in Chemi-Washer

This case study from Bulgarian pulp mill Svilocell is about the detection of a bearing damage through route-based condition monitoring on a Chemi-Washer, using the portable data analyzer Leonova Diamond.

Wash press monitoring with SPM HD

This case study describes test measurements performed on an 8 RPM wash press in the bleaching plant at Zellstoff Pöls AG in Austria using the SPM HD method.
